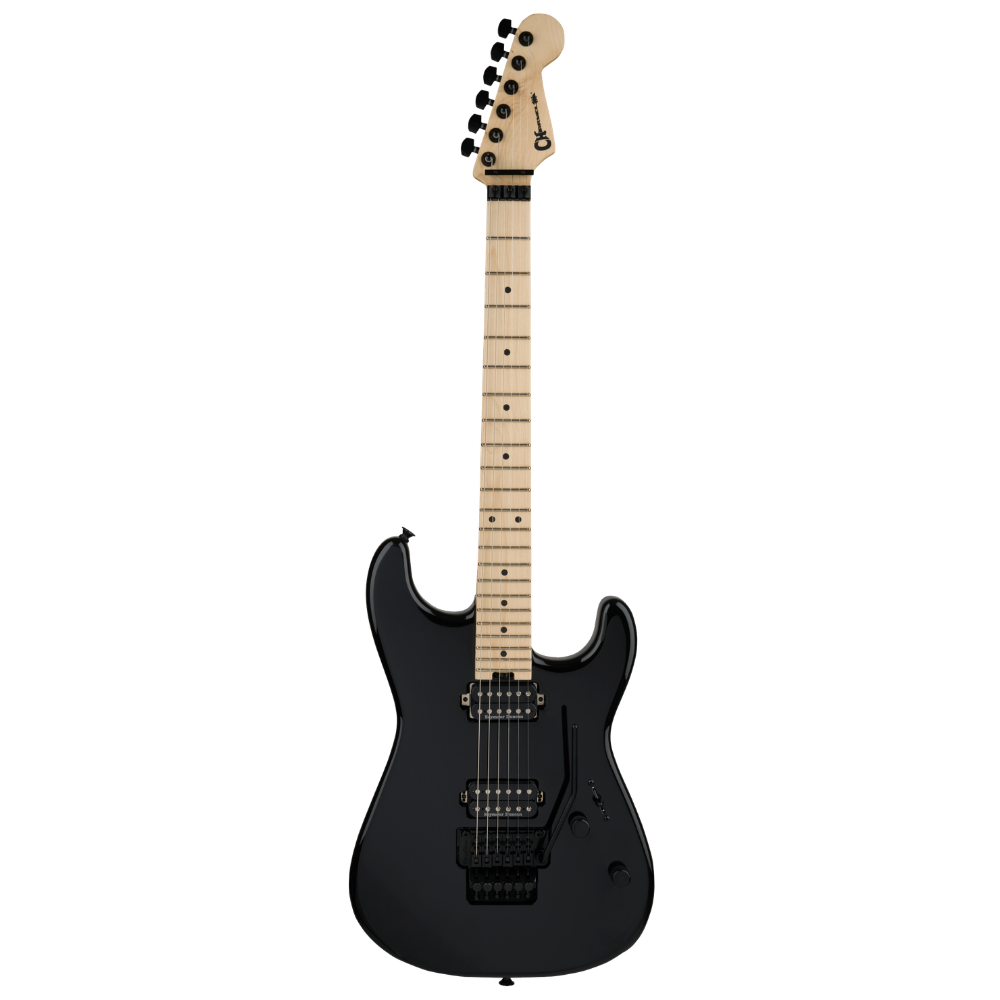

Charvel Pro Mod San Dimas SD1 HH Maple Gloss Black

Model #: 2965001503

Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable and unencumbered upper fret access, the Dinky® alder body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The baked neck has a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, Luminlay® side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Designed for high-speed playing, its 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

SPECS

BODY

• Body Finish Gloss

• Body Shape San Dimas®

• Body Material Alder

NECK

• Neck Material Maple

• Neck Construction Bolt-On with Graphite Reinforcement

• Neck Finish Hand-Rubbed Satin Urethane

• Neck Binding None - Rolled Fingerboard Edges

• Scale Length 25.5" (648 mm)

• Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material Maple

• Number of Frets 22

• Fret Size Jumbo

• Nut Material Floyd Rose® 1000 Series Locking

• Nut Width 1.6875" (42.86 mm)

• Position Inlays    Black Dot

• Headstock Licensed Fender® Stratocaster®

• Neck Plate Charvel®

ELECTRONICS

• Bridge Pickup Seymour Duncan® JB™ TB-4

• Neck Pickup Seymour Duncan® '59™ SH-1N

• Pickup Color Black

• Controls Volume (Push/Pull Coil Split), No-Load Tone

• Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

• Pickup Configuration HH

HARDWARE

• Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)

• Hardware Finish Black

• Tremolo Arm Floyd Rose® FRT O1000 Locking

• Tuning Machines Charvel®-Branded Die-Cast

• Pickguard None

• Control Knobs Knurled Flat-Top

• Switch Tip Barrel Style

MISCELLANEOUS

• Strings Nickel Plated Steel (.009-.042 Gauges)

• Strap Buttons Standard

• Case/Gig Bag Optional Charvel® Hardshell (p/n 009-0915-000); Optional Gig Bag (p/n 007-6756-000)
