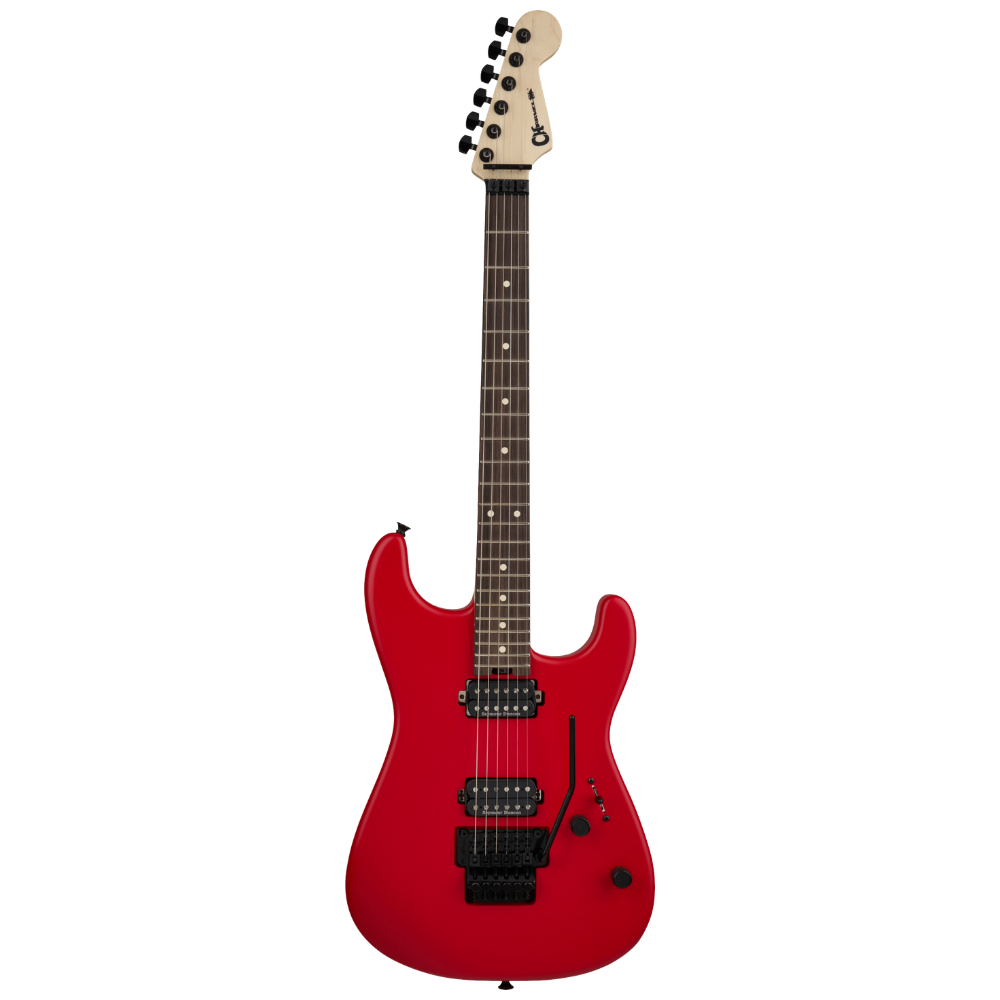

Charvel Pro Mod San Dimas SD1 HH Rosewood Satin Racing Red

Model #: 2965201539

The Pro-Mod Series continues upon Charvel's storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the San Dimas® Style 1 HH FR RW boasts scorching sound, stunning style and grin-inducing playing feel and performance.

SPECS

BODY

• Body Finish Satin

• Body Shape San Dimas® Style 1

• Body Material Alder

NECK

• Neck Material Maple

• Neck Construction Bolt-On with Graphite Reinforcement

• Neck Finish Hand-Rubbed Satin Urethane

• Neck Shape Speed Neck with Rolled Fingerboard Edges

• Neck Binding None - Rolled Fingerboard Edges

• Scale Length 25.5" (648 mm)

• Fingerboard Radius 12" to 16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material Rosewood

• Number of Frets 22

• Fret Size Jumbo

• Nut Material Floyd Rose® 1000 Series Locking

• Nut Width 1.6875" (42.86 mm)

• Position Inlays White Dot

• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel

• String Trees Floyd Rose® Retainer Bar

• Headstock Licensed Fender® Stratocaster®

• Neck Plate 4-Bolt Serialized

ELECTRONICS

• Bridge Pickup Seymour Duncan® JB™ TB-4

• Neck Pickup Seymour Duncan® '59™ SH-1N

• Pickup Color Black

• Controls Volume (Push/Pull Coil Split), No-Load Tone

• Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil

• Pickup Configuration HH

HARDWARE

• Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)

• Hardware Finish Black

• Tremolo Arm Floyd Rose® 1000 Series Locking

• Tuning Machines Charvel®-Branded Die-Cast

• Pickguard None

• Control Knobs Knurled Flat-Top

• Switch Tip Black

• Saddle Height Wrench N/A

MISCELLANEOUS

• Strings Nickel Plated Steel (.009-.042 Gauges)

• Strap Buttons Standard

• Case/Gig Bag Optional Charvel® Style 1/2 Economy Case (p/n 099-0612-100); Optional Charvel® Multi-Fit Gig Bag (p/n 299-1414-006)
