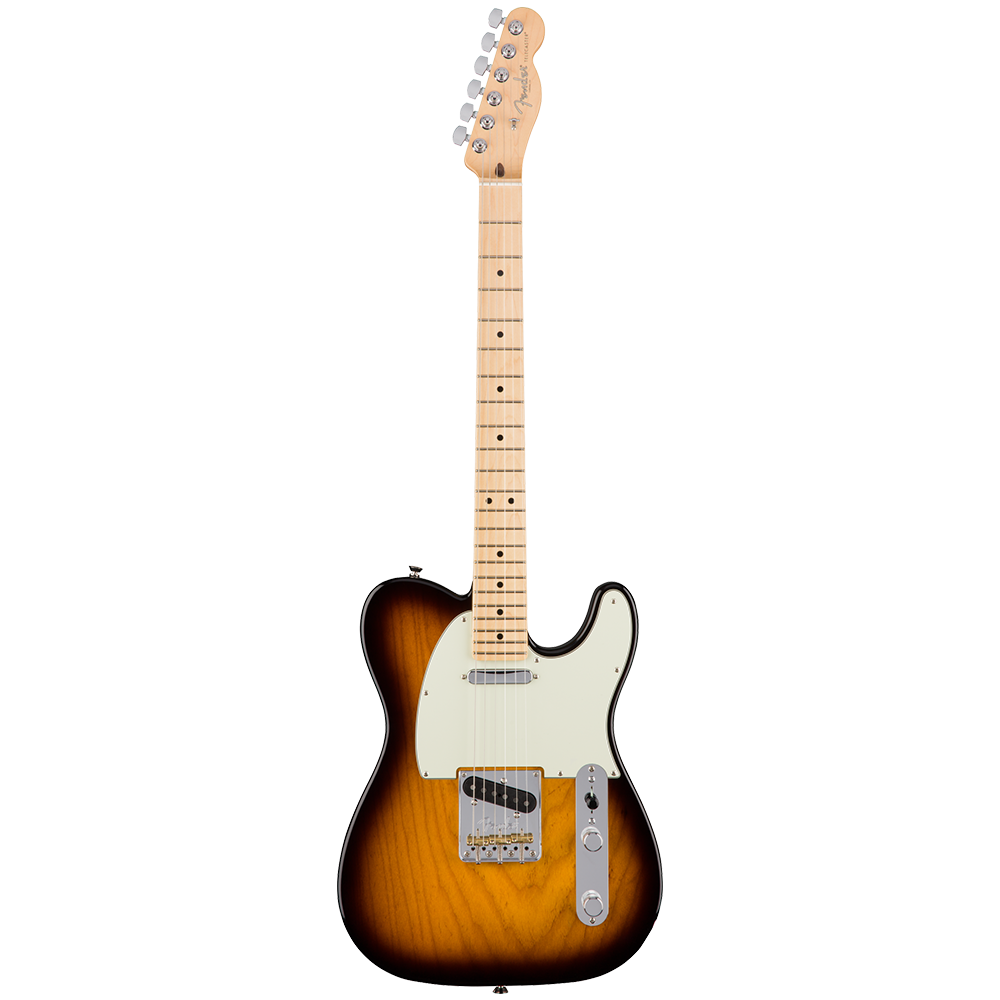

Fender American Pro Telecaster Maple 2-Color Sunburst

MODEL #: 0113062703

FEATURES

• Two Tim Shaw-designed V-Mod single-coil Telecaster pickups

• New Telecaster bridge with compensated brass barrel saddles for better intonation

• New modern "Deep C"-shaped neck profile

• Bone nut; 22 narrow-tall frets for easier bending

• Treble bleed circuit maintains highs when reducing volume

• Includes Elite Molded hardshell case

HIGHLIGHTS

V-MOD PICKUPS
V-Mod Telecaster pickups are engineered with a proprietary blend of alnico magnet types. Each pickup is voiced specifically for its position, creating high-output tone with vintage warmth and the crisp, clear sound that made Fender a legend.

NEW “DEEP C” NECK PROFILE
Designed for comfort and speed, the new American Professional “Deep C” neck profile sports more substantial shoulders. The increased mass and altered geometry creates a more natural feel that’s perfect for chord and single-note playing alike.

NARROW-TALL FRETS
Narrow-tall frets are taller and narrower than their medium jumbo cousins, making them especially effective for bending notes and playing chords up the neck with perfect intonation.

NEW BRIDGE
The new Telecaster bridge sports three compensated brass barrel saddles for accurate intonation and vintage-informed tone. Combining vintage style with modern feel and performance, the redesigned “ashtray” cover stays out of your way, even when palm-muting.

TREBLE-BLEED CIRCUIT
The treble-bleed circuit maintains the high end when turning down the volume knob to reduce gain, letting your tone shine through, no matter where the instrument’s volume is set.

BONE NUT
An original-era Fender design element, a bone nut contributes to superior tone and performance. Many players consider bone nuts to be more “organic” sounding.

Body

• BODY Ash

• BODY FINISH Gloss Urethane

• BODY SHAPE Telecaster®

• BODY STYLE Single Cutaway Solid Body

• BODY MATERIAL Ash

Neck

• NECK MATERIAL Maple

• NECK FINISH Satin Urethane Finish on Back, Gloss Urethane Finish on Front

• NECK SHAPE Modern "Deep C"

• FINGERBOARD RADIUS 9.5" (241 mm)

• FINGERBOARD MATERIAL Maple

• POSITION INLAYS Black Dot

• NUMBER OF FRETS 22

• TRUSS ROD Bi-Flex™

• TRUSS ROD NUT 1/8" American Series

• STRING NUT Bone

• NUT WIDTH 1.685" (42.8 mm)

• NUT MATERIAL Bone

Hardware

• BRIDGE 3-Saddle, Strings-Through-Body Tele® with Compensated Brass Saddles, 6 screw mounting with removable modern "Ashtray" Bridge Cover

• BRIDGE COVER/TAILPIECE Modern "Ashtray" Bridge Cover

• PICKGUARD 3-Ply Mint Green

• CONTROL KNOBS Knurled Flat-Top

• SWITCH TIP Black

• HARDWARE FINISH Nickel/Chrome

• TUNING MACHINES Fender® Standard Cast/Sealed Staggered

• STRING TREES Dual-Wing

• STRINGS Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403

• NECK PLATE 4-Bolt

• STRAP BUTTONS American Series

Electronics

• BRIDGE PICKUP V-Mod Single-Coil Telecaster®

• NECK PICKUP V-Mod Single-Coil Telecaster®

• PICKUP CONFIGURATION SS

• CONTROLS Master Volume with Treble-Bleed, Master Tone

• SWITCHING 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• FRET SIZE Narrow Tall

• SCALE LENGTH 25.5" (64.77 cm)

Accessories

• INCLUDED ACCESSORIES Elite Molded Case
