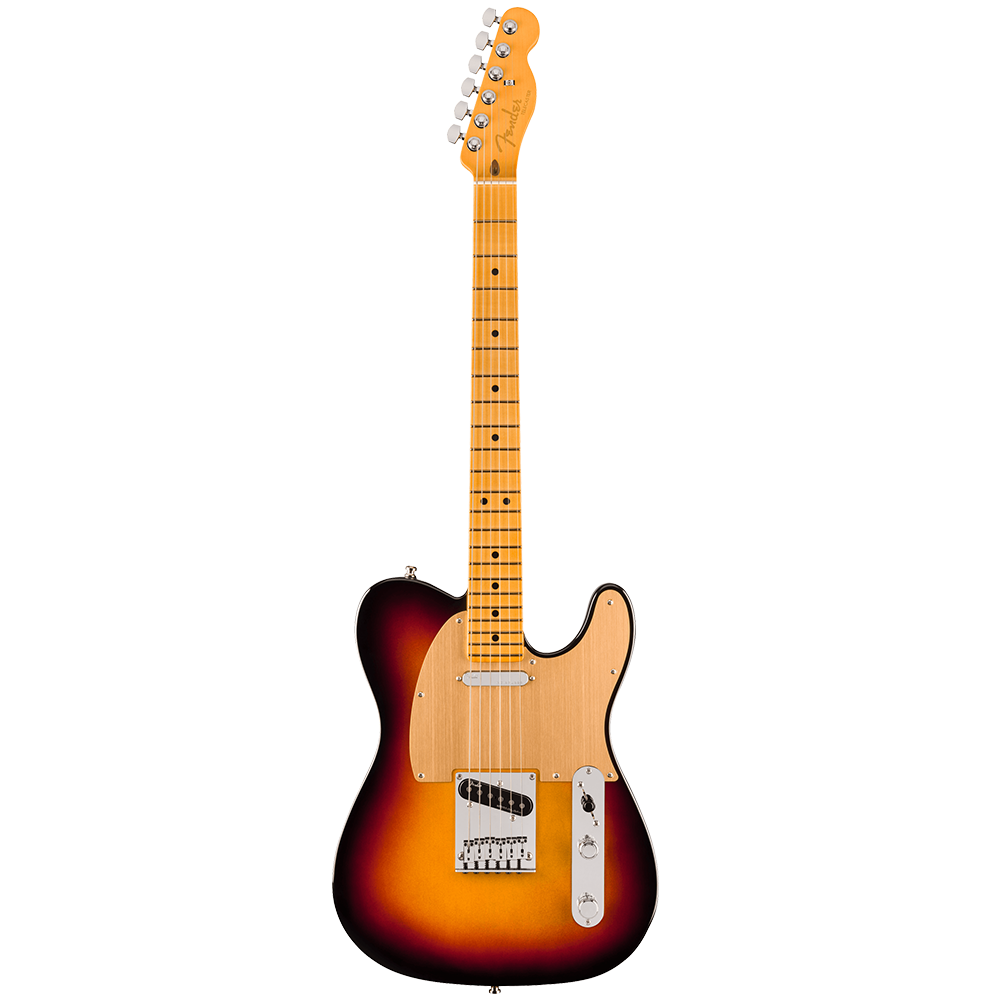

Fender American Ultra II Telecaster Maple Ultraburst

Model #: 0119172712

Features

• Select Alder Body with Ultra Contours and Sculpted Neck Heel

• Quartersawn Maple Modern “D” Profile Neck

• 10"-14" Compound Radius Ebony or Quartersawn Maple Fingerboard with Ultra
• Rolled Edges and Luminlay Side Dots

• Ultra II Noiseless™ Vintage Tele® Pickups, Advanced Electronics and S-1™ Switching

• 6-Saddle String-Through-Body Hardtail Bridge with Chromed Brass Saddles

• Short Post Locking Tuners

Highlights

SELECT ALDER BODY WITH ULTRA CONTOURS AND SCULPTED NECK HEEL
A resonant alder body provides classic Fender tone, while the tapered neck heel allows unparalleled access to the upper registers of the fingerboard and “Ultra” sculpted rear body contours are as beautiful as they are functional.

QUARTERSAWN MAPLE MODERN “D” PROFILE NECK
Slim with wide shoulders, the “Modern D” neck profile works for any style of playing, while extra-strong quartersawn maple ensures unparalleled stability.

COMPOUND RADIUS EBONY OR QUARTERSAWN MAPLE FINGERBOARD, ULTRA ROLLED EDGES, LUMINLAY SIDE DOTS
Built for speed, comfort and facility, the 10”-14” compound-radius fingerboard is rounded near the nut, becoming increasingly flatter as it nears the upper register. Luminlay® glow-in the-dark side dots provide exceptional visibility even on the darkest stages while “Ultra” rolled fingerboard edges and a silky, smooth “Ultra” satin finish make the neck effortless to play.

ULTRA II NOISELESS™ VINTAGE TELE® PICKUPS, ADVANCED ELECTRONICS AND S-1™ SWITCHING
The Ultra II Noiseless™ Vintage pickups are responsive and expressive, delivering definitive Tele® twang for exceptional Fender tone without hum. Ultra II Noiseless™ pickups feature an evolved architecture of specialized stacked coils with the top coil wound around Alnico V rod magnets to produce true single-coil Fender tone, and the isolated bottom coil calibrated to preserve the tone and simply reject hum. Our patented S-1™ switch selects between series or parallel wiring for added tonal range, while the treble bleed circuit maintains your highs at any volume.

6-SADDLE STRING-THROUGH-BODY HARDTAIL BRIDGE WITH CHROMED BRASS SADDLES
This precision manufactured strings-through-body bridge features chromed brass block saddles for endless sustain, precise attack and rock-solid tuning stability.

SHORT POST LOCKING TUNERS
A high-performance feature, short post locking tuning machines provide a sharper and more consistent break angle over the nut for increased sustain and enhanced tuning stability while making string changes fast and easy.

Specs

Accessories

• Saddle Height Wrench .050" Hex (Allen) Wrench

• Truss Rod Wrench 1/8" Hex (Allen)

Body

• Body Select Alder

• Body Finish Gloss Urethane

• Body Material Select Alder

• Body Shape Telecaster®

• Body Style Solid Body

Electronics

• Bridge Pickup Ultra II Noiseless™ Vintage Tele®

• Controls Master Volume (S-1™ Switch), Master Tone

• Neck Pickup Ultra II Noiseless™ Vintage Tele®

• Pickup Configuration SS

• Special Electronics S-1™ Switch Activates Series Wiring Option in Any Pickup
• Position (Bypasses Pickup Selector Switch)
  Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Hardware

• Bridge 6-Saddle String-Through-Body Hardtail with Chromed Brass Saddles

• Bridge Mounting 3-Screw Modern

• Control Knobs Heavy Knurled Flat-Top

• Hardware Finish Nickel/Chrome

• Neck Plate 4-Bolt Asymmetrical

• Pickguard 1-Ply Gold Anodized Aluminum

• Pickup Covers Neck: Chrome; Bridge: Black

• Strap Buttons Locking

• String Trees Ultra String Guide

• Strings Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403

• Switch Tip Barrel Style, Black

• Tuning Machines Deluxe Cast/Sealed Locking (all short posts)

Measurements

• Fret Size Medium Jumbo

• Scale Length 25.5" (64.77 cm)

Neck

• Fingerboard Material Quartersawn Maple

• Fingerboard Radius 10" to 14" Compound Radius (254 mm to 355.6 mm)

• Headstock Telecaster®

• Neck Construction 4-Bolt

• Neck Finish Ultra Satin Urethane

• Neck Material Quartersawn Maple

• Neck Shape Modern "D"

• Number of Frets 22

• Nut Material Graph Tech® TUSQ®

• Nut Width 1.685" (42.8 mm)

• Position Inlays Black Pearloid Dot - 7 mm

• Side Dots Luminlay®

• String Nut Graph Tech® TUSQ®

• Truss Rod Bi-Flex
