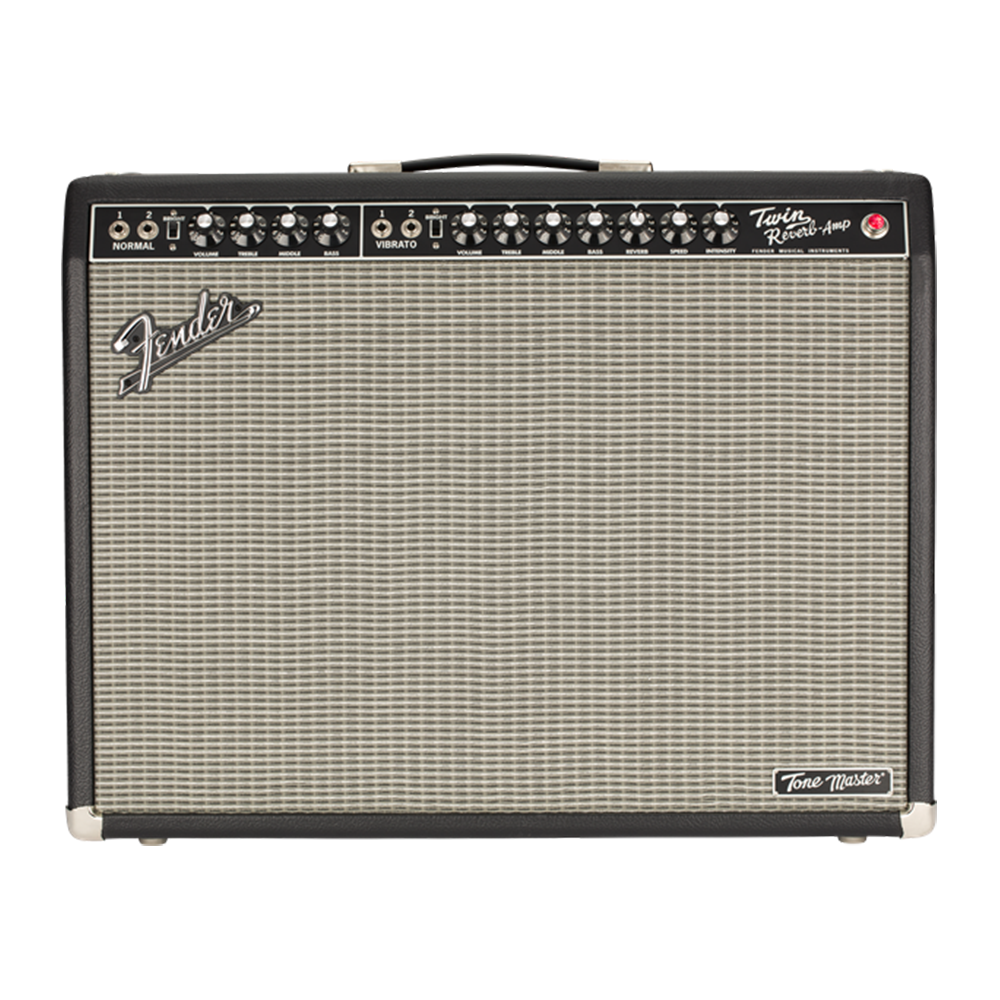

Fender Tone Master Twin Reverb

Model #: 2274204000

Features

• Two Jensen N-12K neodymium speakers

• Normal and Vibrato channels, each with two inputs and Bright switches

• Rear-panel output power selector for full power and five attenuated settings

• Balanced XLR line output with impulse response (IR) cabinet simulations, level control, and ground switch

• Lightweight, resonant pine cabinet

• Power jewel illuminates in different colors for normal operation, warmup, and mute/silent mode

• USB port for firmware upgrades

• Universal worldwide 100V - 240V operation

• Cover and two-button footswitch included

Highlights

LEGENDARY TWIN TONE
This amp features the most accurate emulation of our original Twin Reverb. Sound like the original, without the extra weight and maintenance.

ONBOARD TREMOLO AND REVERB
Our powerful convolution-based technologies recreate the classic reverb and tremolo effects that made our amps famous and inspired new genres of music.

REAR PANEL FEATURES
This amp’s rear panel is packed with useful controls and connections: Line Output with Level control, ground lift switch to eliminate hum and a three-way IR cabinet simulation switch to select various microphone options.

6-WAY POWER ATTENUATOR SWITCH
Enjoy full, natural tone at almost any volume—from a full 85W of Fender power down to bedroom- and apartment-friendly 1W.

CUSTOM JENSEN NEO SPEAKER
Designed to match the traditional C12K speaker, the Jensen N-12K Neo speaker is engineered using lightweight neodymium magnets.

SOLID PINE CABINET
Lighter than plywood, solid pine is a traditional Fender cabinet material from the ‘50s and ’60s, making for more resonant and more “musical” speaker cabinets.

Specs

Accessories

• Footswitch 2-Button Footswitch Included

Electronics

• Channels Two - (Normal and Vibrato)

• Connection Type 1/4"

• Connectivity USB For Firmware Updates

• Control Panel Normal: Bright, Volume, Treble, Middle Bass; Vibrato: Bright, Volume,
• Treble, Middle, Bass, Reverb, Speed, Intensity

• Effects Reverb, Tremolo

• Inputs Four - (1/4", Two Normal and Two Vibrato)

• Line Out One - (Balanced XLR with Ground Lift and Level Control)

• Voltage Requirements 100-240 VAC, 50-60 Hz

• Wattage 200W into 4Ω (Simulates 85W Tube Amp Performance)

Hardware

• Amplifier Covering Textured Vinyl

• Amplifier Jewel Red (Power), Red/Amber (Warmup), Amber (Mute)

• Cabinet Material Lightweight Solid Pine

• Control Knobs Vintage-Style Skirted Black Plastic

• Front Panel Black

• Grille Cloth Silver

• Handle Molded Plastic Strap with Nickel-Plated Caps

• Rear Control Panel Power, Mute, Output Power Selector, Cabinet Simulator, Line Out Level, Ground Lift

• Reverb Tank DSP

• Reverb Tank Type DSP

• Tilt Back Legs Medium, 16" (40.64 cm), PN 0990712000

Measurements

• Product Depth 10.375" (21.9 cm)

• Product Height 20.24" (51.41 cm)

• Product Width 26.15" (66.4 cm)

Speakers

• Speakers Two - 12" Jensen® N-12K Neo

• Total Impedance 4 ohms
