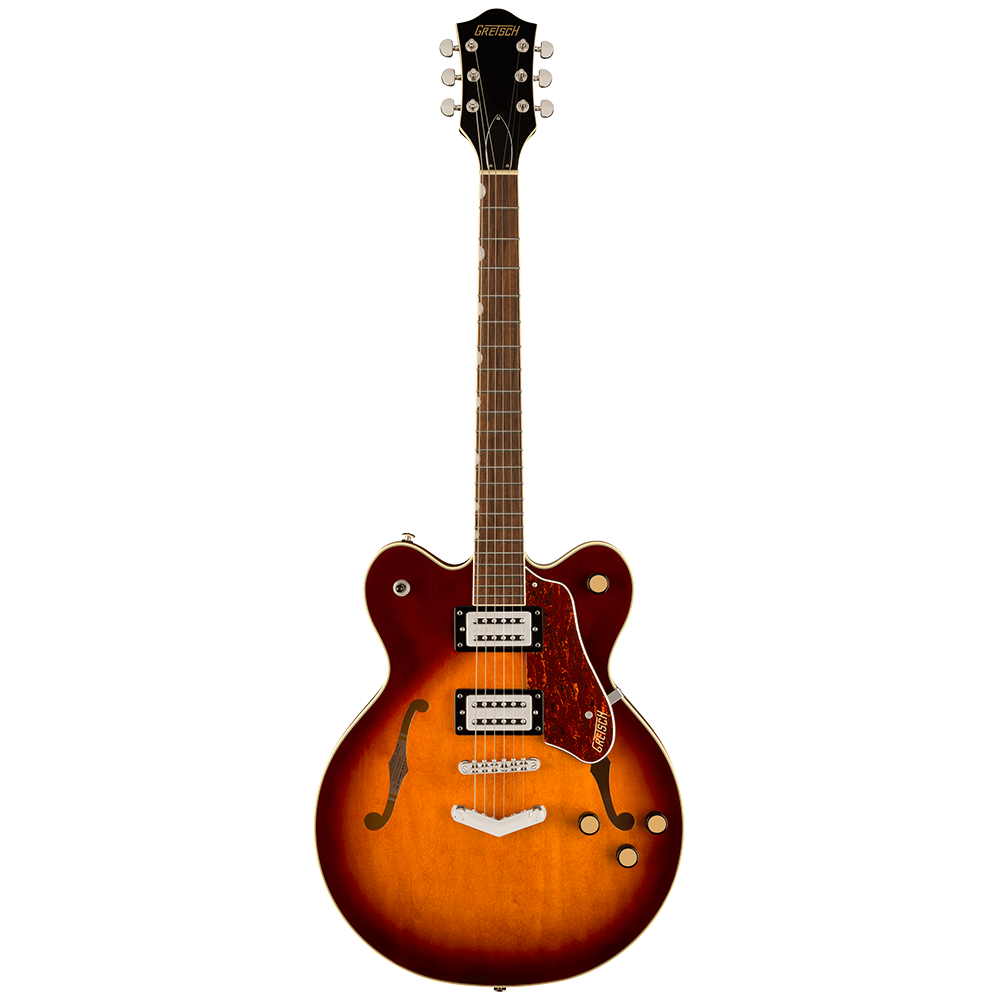

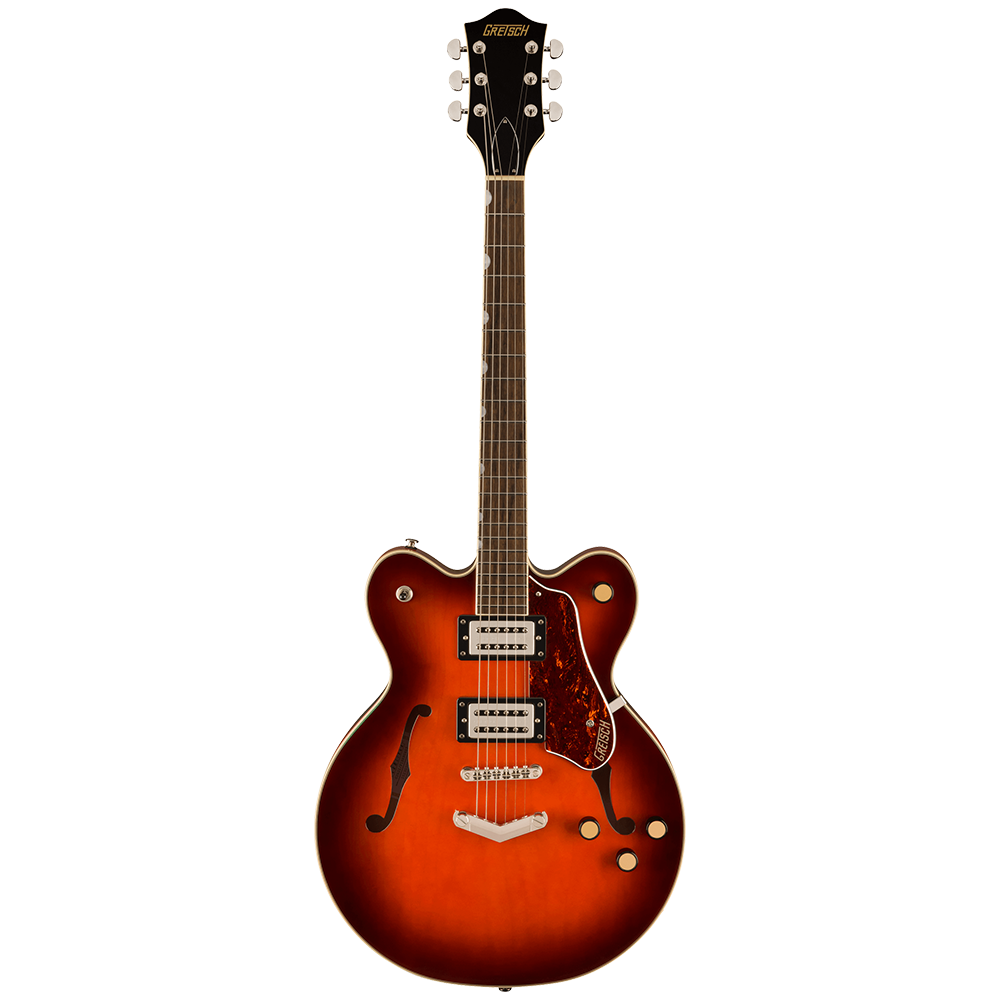

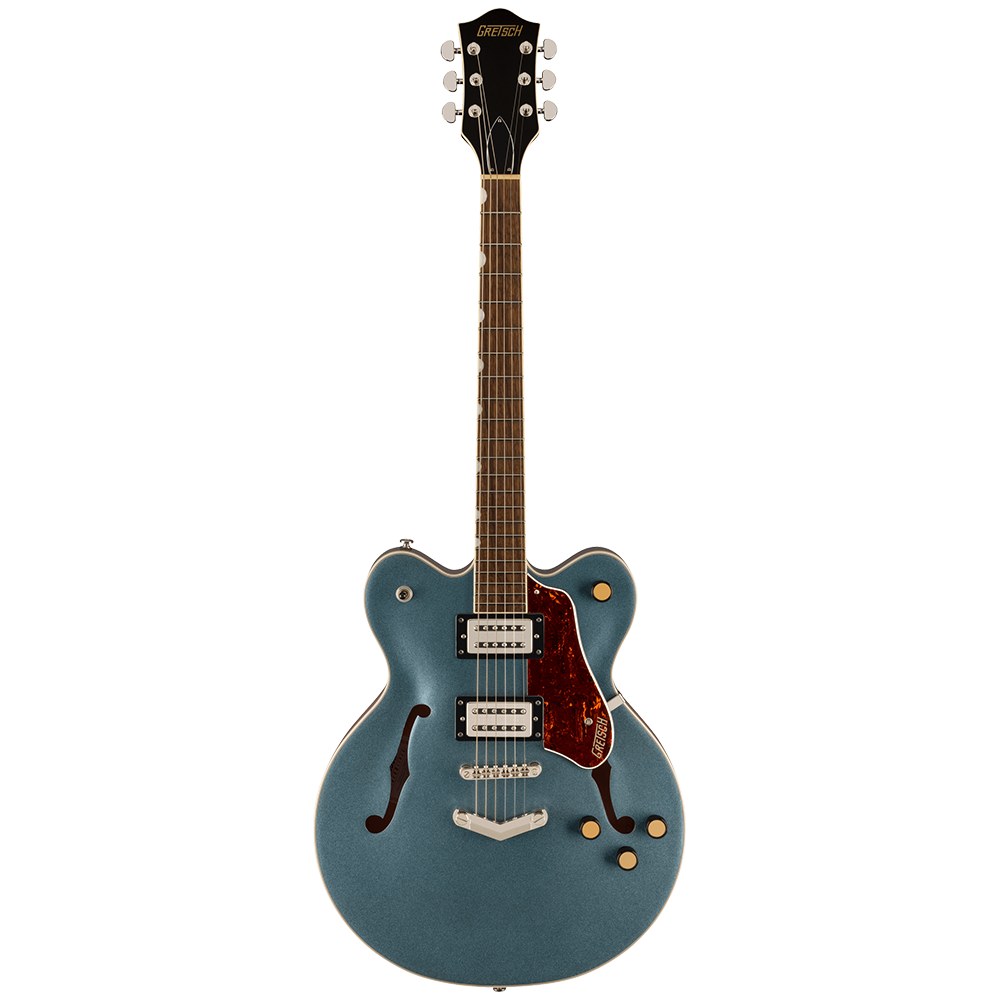

Gretsch G2622 Streamliner Center Block Double-Cut with V-Stoptail Laurel

Model#: 2817050516 / 2817050568 / 2817050597

DESCRIPTION

The Streamliner™ Collection revitalizes the best elements from the past and combines them with exciting new features to deliver exceptional performance, sound, and style at an incredible value.

The G2622 Streamliner Center Block Double-Cut with V-Stoptail bursts into the modern era with powerful sound and style. The sleek G2622 is designed for the guitarist who demands more than the mundane from an instrument - more performance, more style and most importantly, more volume - while retaining everything you expect from a Gretsch.

HIGHLIGHTS

Maple Body with New Center Block Design
The G2622 Center Block features an arched maple body with an all-new center block design under the hood. This new center block is designed to balance lightweight comfort with a full, rich sound and increased presence; resulting in improved attack and sustain, and excellent feedback rejection, in a package that won't weigh you down.

All-New Broad'Tron BT-3S Pickups
The G2622 features our new Broad'Tron BT-3S pickup set. Utilizing a combination of Alnico 5 and Alnico 2 magnets, the new BT-3S pickups provide stronger mids, tight but full lows, and smooth clear highs that retain a smooth and musical presence.

Versatile Controls with Coil-Splitting
The Streamliner's sonic power is harnessed and shaped by the traditional control layout - neck and bridge pickup volume controls, a master tone control, master volume control and three-way pickup switching.

The addition of a push/pull pot on the master volume control allows coil-splitting to provide useful single coil sounds, adding another layer of tonal versatility to an already strong sonic arsenal.

FEATURES

• All-new Broad'Tron™ BT-3S humbucking pickups

• Double-cutaway 16" arched maple body with chambered center block

• Soft "C" shaped nato neck

• 12"-radius laurel fingerboard with pearloid Neo Classic™ thumbnail inlays and 22 medium jumbo frets

• Real bone nut

• Master volume, master tone and individual pickup volume controls provide complete tone-shaping flexibility

• Push/Pull coil-splitting on Master Volume

• Radio control knobs

• Anchored Adjusto-Matic™ bridge

• Gretsch V-Stop tailpiece

• Three-ply tortoise pickguard

• Nickel hardware

SPECS

Body

• BODY Laminated Maple

• BODY FINISH Gloss

• BODY SHAPE Center Block

• BODY TOP Arched Laminated Maple

• BODY BINDING Aged White with B/W/B Purfling

• BODY BACK Arched Laminated Maple

• BODY STYLE Gretsch® Center Block Guitars

• BODY MATERIAL Laminated Maple

• CUTAWAY Double Cutaway

• BRACING Center Block

• WAIST 9.75" (248 mm)

• SOUND HOLE F-Holes

Neck

• HEADSTOCK BINDING Aged White

• NECK MATERIAL Nato

• NECK FINISH Gloss

• NECK SHAPE Soft "C"

• NECK CONSTRUCTION Set-Neck

• FINGERBOARD RADIUS 12" (305 mm)

• FINGERBOARD MATERIAL Laurel

• POSITION INLAYS Pearloid Neo-Classic™ Thumbnail

• SIDE DOTS Black

• NUMBER OF FRETS 22

• STRING NUT Bone

• NUT WIDTH 1.6875" (42.86 mm)

• NUT MATERIAL Bone

Hardware

• BRIDGE Adjusto-Matic™

• BRIDGE COVER/TAILPIECE V-Stoptail

• BRIDGE MOUNTING Anchored

• PICKGUARD 3-Ply Tortoise with Gold Gretsch® Logo

• PICKUP COVERS Nickel

• CONTROL KNOBS Gretsch® Radio Knob

• SWITCH TIP Nickel

• HARDWARE FINISH Nickel

• TUNING MACHINES Die-Cast Sealed

• STRINGS Nickel Plated Steel (.010-.046 Gauges)

• STRAP BUTTONS Standard Strap Button

Electronics

• BRIDGE PICKUP Broad'Tron™ BT-3S

• NECK PICKUP Broad'Tron™ BT-3S

• PICKUP CONFIGURATION Broad'Tron™ / Broad'Tron™

• CONTROLS Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split

• SWITCHING 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

• AUXILIARY SWITCHING

Measurements

• FRET SIZE Medium Jumbo

• SCALE LENGTH 24.75" (629 mm)
