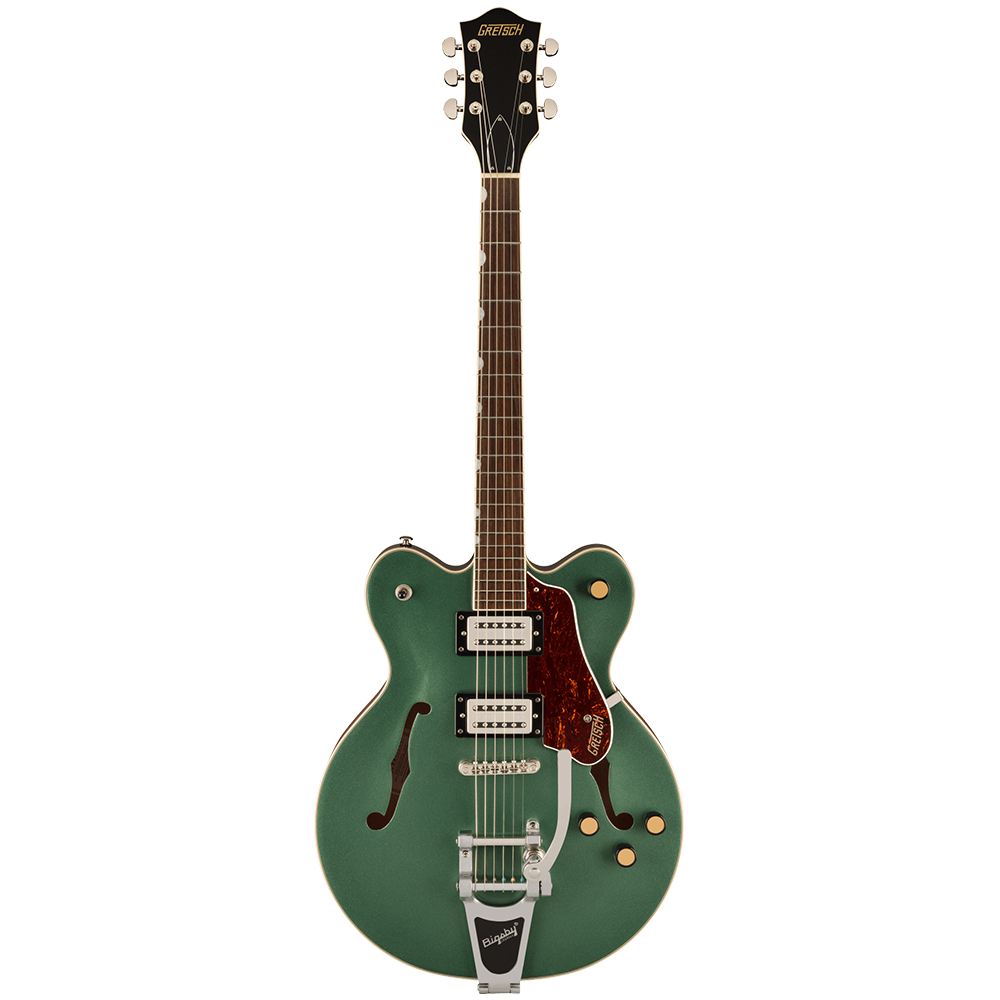

Gretsch G2622T Streamliner Center Block Double-Cut with Bigsby Laurel
Gretsch G2622T Streamliner Center Block Double-Cut with Bigsby Laurel
Couldn't load pickup availability
Model#: 2807250530 / 2807250562
FEATURES
- All-new Broad'Tron™ BT-3S humbucking pickups
- Double-cutaway 16" arched maple body with chambered center block
Soft "C" shaped nato neck
- 12"-radius laurel fingerboard with pearloid Neo Classic™ thumbnail inlays and 22 medium jumbo frets
- Real bone nut
- Master volume, master tone and individual pickup volume controls provide complete tone-shaping flexibility
- Push/Pull coil-splitting on Master Volume
- Radio control knobs
- Anchored Adjusto-Matic™ bridge
- Bigsby® B70 vibrato tailpiece
- Three-ply tortoise pickguard
- Nickel hardware
HIGHLIGHTS
Maple Body with New Center Block Design
The G2622T Center Block features an arched maple body with an all-new center block design under the hood. This new center block is designed to balance lightweight comfort with a full, rich sound and increased presence; resulting in improved attack and sustain, and excellent feedback rejection, in a package that won't weigh you down.
All-New Broad'Tron BT-3S Pickups
The G2622T features our new Broad'Tron BT-3S pickups. Utilizing a combination of Alnico 5 and Alnico 2 magnets, the new BT-3S pickups provide stronger mids, tight but full lows, and smooth clear highs that retain a smooth and musical presence.
Versatile Controls with Coil-Splitting
The Streamliner's sonic power is harnessed and shaped by our traditional control layout - neck and bridge pickup volume controls, a master tone control, master volume control and three-way pickup switching.
The addition of a push/pull pot on the master volume control allows coil splitting to provide useful single coil sounds, adding another layer of tonal versatility to an already strong sonic arsenal.
SPECS
Body
- BODY Laminated Maple
- BODY FINISH Gloss
- BODY SHAPE Center Block
- BODY TOP Arched Laminated Maple
- BODY BINDING Aged White with B/W/B Purfling
- BODY BACK Arched Laminated Maple
- BODY STYLE Gretsch® Center Block Guitars
- BODY MATERIAL Laminated Maple
- CUTAWAY Double Cutaway
- BRACING Center Block
- WAIST 9.75" (248 mm)
- SOUND HOLE F-Holes
Neck
- HEADSTOCK BINDING Aged White
- NECK MATERIAL Nato
- NECK FINISH Gloss
- NECK SHAPE Soft "C"
- NECK CONSTRUCTION Set-Neck
- FINGERBOARD RADIUS 12" (305 mm)
- FINGERBOARD MATERIAL Laurel
- POSITION INLAYS Pearloid Neo-Classic™ Thumbnail
- SIDE DOTS Black
- NUMBER OF FRETS 22
- STRING NUT Bone
- NUT WIDTH 1.6875" (42.86 mm)
- NUT MATERIAL Bone
Hardware
- BRIDGE Adjusto-Matic™
- BRIDGE COVER/TAILPIECE Bigsby® B70
- BRIDGE MOUNTING Anchored
- PICKGUARD 3-Ply Black with Gold Gretsch® Logo
- PICKUP COVERS Nickel
- CONTROL KNOBS Gretsch® Radio Knob
- SWITCH TIP Black
- HARDWARE FINISH Nickel
- TUNING MACHINES Die-Cast Sealed
- STRINGS Nickel Plated Steel (.010-.046 Gauges)
- STRAP BUTTONS Standard Strap Button
Electronics
- BRIDGE PICKUP Broad'Tron™ BT-3S
- NECK PICKUP Broad'Tron™ BT-3S
- PICKUP CONFIGURATION Broad'Tron™ / Broad'Tron™
- CONTROLS Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Tone, Master Volume with Push/Pull for Coil Split
- SWITCHING 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
- AUXILIARY SWITCHING Push/Pull Pot (for Coil Split)
Measurements
- FRET SIZE Medium Jumbo
- SCALE LENGTH 24.75" (629 mm)
