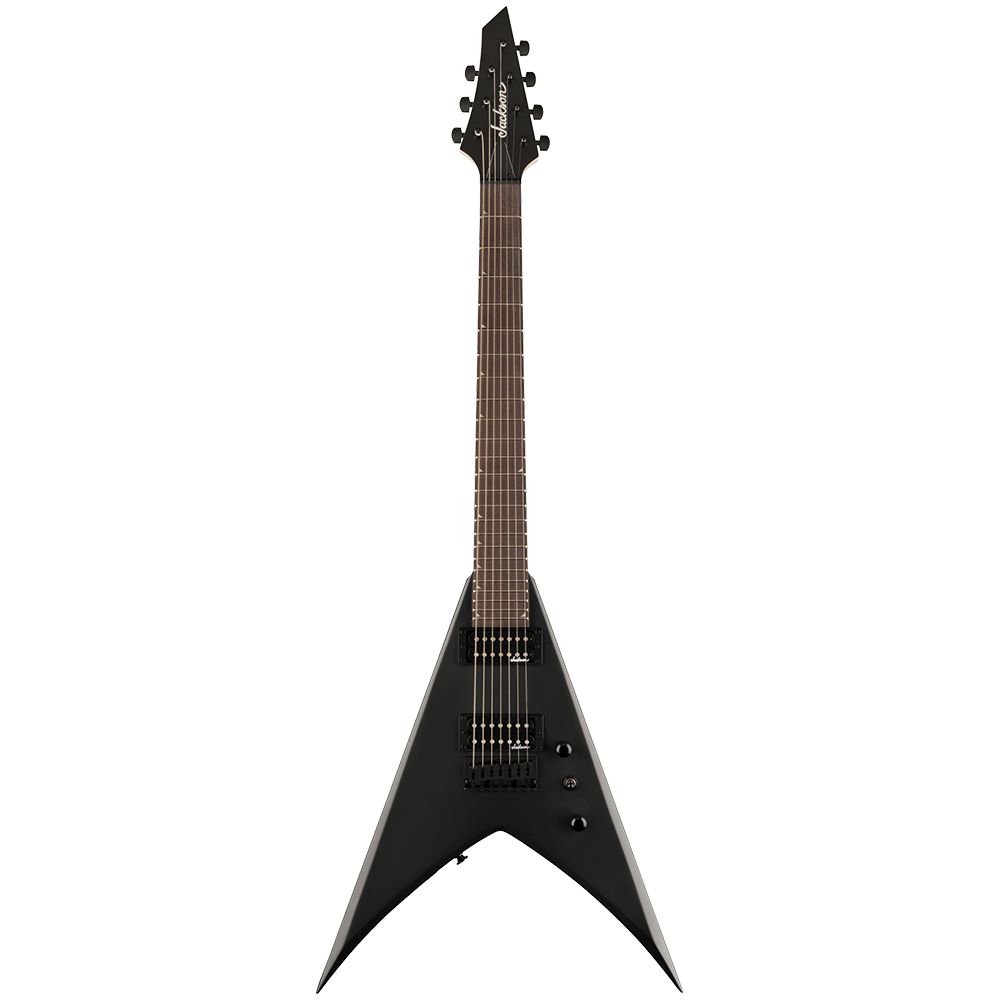

Jackson Electric Guitar King V JS22-7 KV HT Amaranth Satin Black

Model #: 2910127568

FEATURES

• Poplar body

• Bolt-on maple neck with graphite reinforcement and scarf joint

• Amaranth fingerboard

• 12"-16" compound radius

• 26.5" scale length

• 24 jumbo frets and

• piranha tooth inlays

• three-way toggle switch

• Jackson high-output pickups

• single volume and tone controls

HIGHLIGHTS

12" - 16" COMPOUND RADIUS
Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.

DUAL JACKSON HIGH-OUTPUT 7-STRING HUMBUCKING PICKUPS
These Jackson 7-string high-output humbucking pickups are painstakingly voiced for full, rich tone while providing maximum overdrive and sustain without muddiness.

SPECS

Body

• BODY Poplar

• BODY FINISH Satin

• BODY SHAPE King V™

• BODY MATERIAL Poplar

Neck

• HEADSTOCK Jackson® AT-1 3x4 (3 Over/4 Under)

• NECK MATERIAL Maple

• NECK FINISH Satin

• NECK CONSTRUCTION Bolt-On with Graphite Reinforcement and Scarf Joint

• FINGERBOARD RADIUS 12"-16" Compound Radius (304.8 mm to 406.4 mm)

• FINGERBOARD MATERIAL Amaranth

• POSITION INLAYS Pearloid Piranha Tooth

• SIDE DOTS White

• NUMBER OF FRETS 24

• TRUSS ROD Dual-Action Head Adjust

• STRING NUT Black Plastic

• NUT WIDTH 1.875" (47.6 mm)

• NUT MATERIAL Black Plastic

Hardware

• BRIDGE Jackson® HT7 String-Through-Body Hardtail

• CONTROL KNOBS Dome-Style

• HARDWARE FINISH Black

• TUNING MACHINES Jackson® Sealed Die-Cast

• STRINGS Nickel Plated Steel (.009-.054 Gauges)

• NECK PLATE Jackson®

• STRAP BUTTONS Standard

Electronics

• BRIDGE PICKUP Jackson® High-Output 7-String Humbucking

• NECK PICKUP Jackson® High-Output 7-String Humbucking

• PICKUP CONFIGURATION HH

• CONTROLS Volume, Tone

• SWITCHING 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup

Measurements

• FRET SIZE Jumbo

• SCALE LENGTH 26.5" (673 mm)
