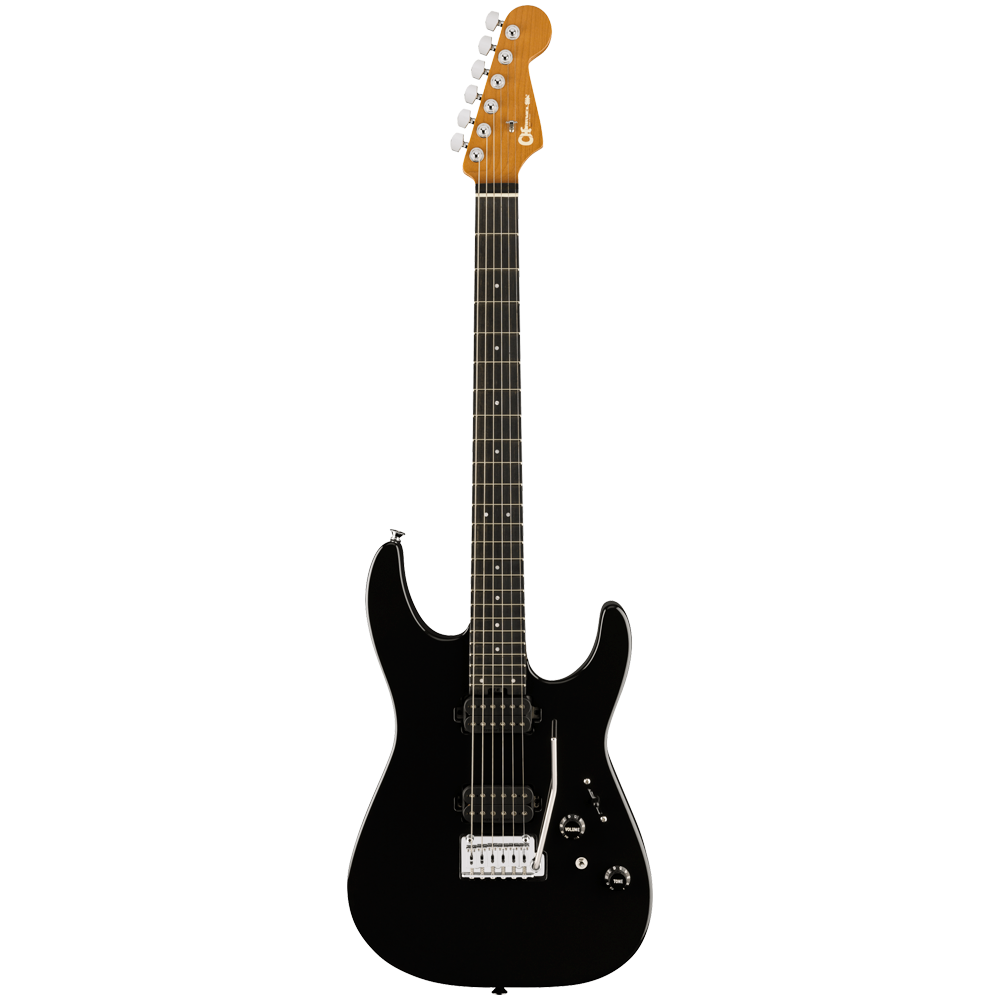

Charvel Pro-Mod DK24 HH 2PT EB Ebony Gloss Black

Model #: 2962411303

Featuring a sculpted shredder's cut heel and scalloped lower back bout for comfortable and unencumbered upper fret access, the Dinky® alder body is paired with a graphite-reinforced bolt-on caramelized maple neck for rock-solid stability. The baked neck has a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, Luminlay® side dots to guide your way along the fretboard on dark stages and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Designed for high-speed playing, its 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

FEATURES

• Alder Dinky® body

• Bolt-on caramelized maple neck with graphite reinforcement

• 12”-16” compound radius ebony fingerboard with 24 jumbo frets and pearloid dot inlays

• Graph Tech® TUSQ® XL nut

• Heel-mount truss rod adjustment wheel

• Direct mount Seymour Duncan® Custom Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico II Pro APH-1N neck pickup

• Five-way blade switch, Stratocaster®-style skirt knobs for no-load tone control and volume knob (with 500K EVH® Bourns™ low-friction potentiometer)

• Mini two-way toggle switch for parallel and series pickup combinations

• Gotoh® Custom 510 recessed tremolo bridge

• Charvel-branded die-cast locking tuners

• Available in Gloss Black with chrome hardware

SPECS

GENERAL

• Model Number 2962411303

• Series Pro-Mod

• Color Gloss Black

• Number of Strings 6

• Orientation Right-Hand

BODY

• Body Finish Gloss

• Body Shape Dinky®

• Body Material Alder

HARDWARE

• Bridge Gotoh® Custom 510 Tremolo

• Hardware Finish Chrome

• Tremolo Arm Gotoh®

• Tuning Machines Charvel®-Branded Die-Cast Locking

• Pickguard None

• Control Knobs Strat®-Style Skirt

• Switch Tip Black

• Saddle Height Wrench Yes

NECK

• Neck Material Caramelized Maple

• Neck Construction Bolt-On with Graphite Reinforcement

• Neck Finish Hand-Rubbed Urethane

• Neck Shape Speed Neck with Rolled Fingerboard Edges

• Neck Binding None - Rolled Fingerboard Edges

• Scale Length 25.5" (648 mm)

• Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material Ebony

• Number of Frets 24

• Fret Size Jumbo

• Nut Material Graph Tech TUSQ XL

• Nut Width 1.6875" (42.86 mm)

• Position Inlays 4mm Pearloid Dot

• Side Dots Luminlay®

• Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel

• String Trees Fender® Standard String Guide

• Headstock Licensed Fender® Stratocaster®

• Neck Plate None - 4-Bolt Sculpted Heel

HARDWARE

• Bridge Charvel® HT6 String-Through-Body Hardtail with Brass Saddles
• Hardware Finish Chrome
• Tuning Machines Charvel®-Branded Die-Cast Locking
• Pickguard 1-Ply Parchment
• Control Knobs Dome-Style
• Switch Tip Parchment
• Saddle Height Wrench Yes

ELECTRONICS

• Bridge Pickup Seymour Duncan® Full Shred™ TB-10

• Neck Pickup Seymour Duncan® Alnico II Pro™ APH-1N
  Pickup Color Black

• Controls Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone

• Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer
• Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup

• Auxiliary Switching 2-Position Mini Toggle Down/All Series, Up/All Parallel
  Pickup Configuration HH

MISCELLANEOUS

• Strings Nickel Plated Steel (.009-.042 Gauges)

• Strap Buttons Standard

• Case/Gig Bag Optional Gig Bag (p/n 007-6756-000)

• Other Features Luminlay® Side Dots
